G Series
G85-G98
Product description
Hardness: Shore A 85-98
Processing: Injection & Extrusion.
Features: Excellent abrasion resistance, Oil/Solvent resistance, Low temperature flexibility, High pressure resistance, Excellent mechanical properties.

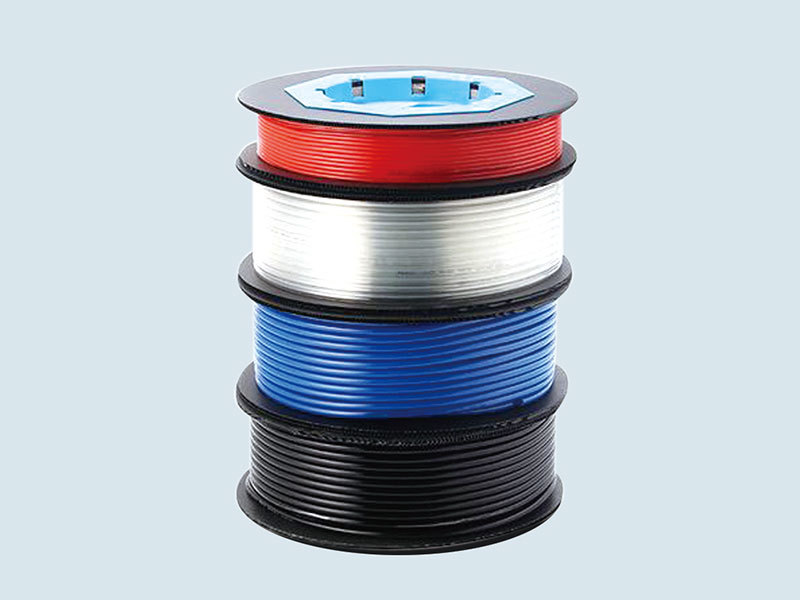

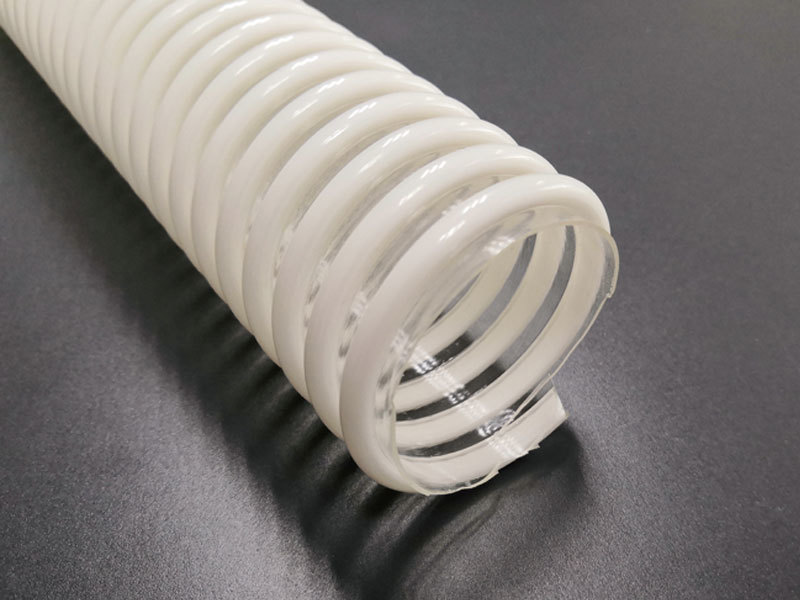

Applications: Hose & Tube, Automotive parts, Caster, Footwear, Film, Clothing and Footwear etc.
Items | Hardness | Density | 100%Modulus | 300%Modulus | Tensile Strength | Elongation At Break | Tear Strength |
Standard | ASTM D2240 | ASTM D792 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D624 |
Unit | Shore A/D | g/cm³ | MPa | MPa | MPa | % | N/mm |
G85A | 87A | 1.20 | 6 | 11 | 35 | 560 | 115 |
G90A | 92A | 1.22 | 10 | 19 | 40 | 500 | 140 |
G95A | 95A | 1.23 | 13 | 22 | 45 | 460 | 180 |
G98A | 98A | 1.24 | 15 | 24 | 45 | 420 | 190 |
Note: The above values are shown as typical values and should not be used as specifications.
