X 系列
X75A-X64D
产品描述
硬 度：Shore A 75-D64
Hardness：Shore A 75-D64
加工方式：注塑
Processing：Injection.
产品特性：良好的加工性、成型周期短、抗析出、高透明、易喷涂、经济实用性高
Features： Excellent processing properties, Fast setting time, Anti-migration, High transparency, Easy to spray, High economic practicability.

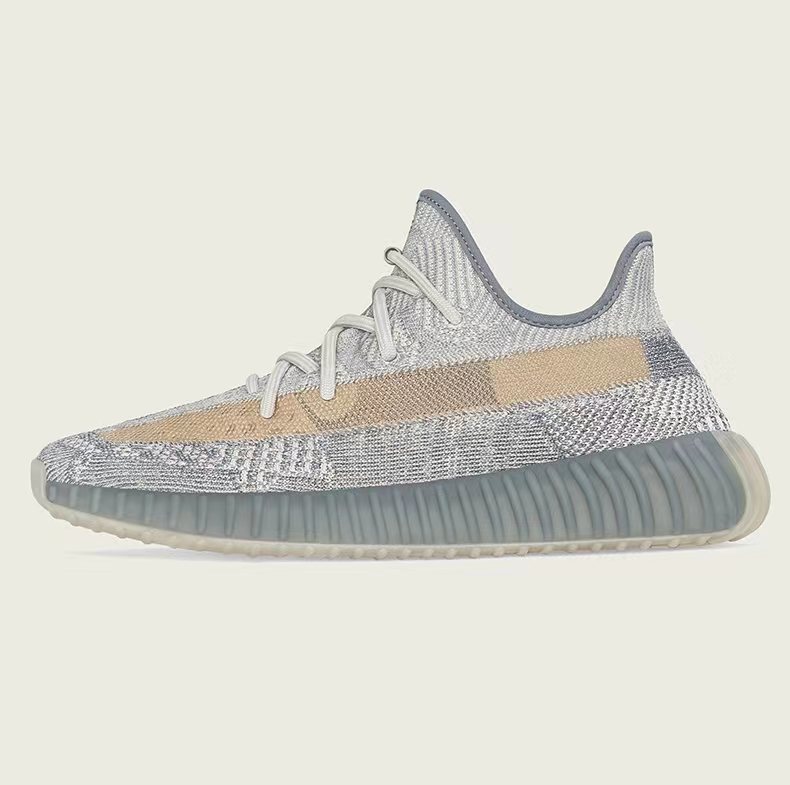

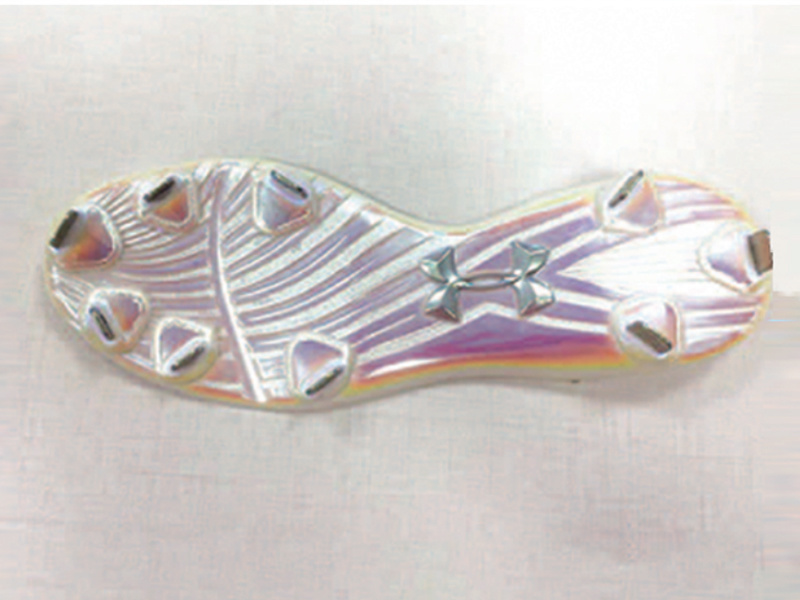

应用领域：鞋材配件、时装鞋底等
Applications：Shoe accessories, Fashion soles etc.
项目 Items | 硬度 Hardness | 密度 Density | 100%模量 100%Modulus | 300%模量 300%Modulus | 抗张强度 Tensile Strength | 断裂伸长率 Elongation At Break | 撕裂强度 Tear Strength |
标准 Standard | ASTM D2240 | ASTM D792 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D624 |
单位 Unit | Shore A/D | g/cm³ | MPa | MPa | MPa | % | N/mm |
X75A | 78A | 1.22 | 5 | 10 | 32 | 600 | 110 |
X80A | 83A | 1.23 | 6 | 11 | 35 | 560 | 115 |
X85A | 87A | 1.23 | 7 | 13 | 39 | 460 | 120 |
X95A | 95A | 1.25 | 15 | 24 | 45 | 420 | 180 |
注：表中数据均为典型值，不能视为产品标准
Note: The above values are shown as typical values and should not be used as specifications.
