S 系列
S1180-S1198
产品描述
硬 度：Shore A 80-98
Hardness：Shore A 80-98
加工方式：注塑、挤出
Processing：Injection & Extrusion.
产品特性：优异的耐磨性、耐油/溶剂性、抗低温曲挠性、抗高压性、优异的力学性能
Features： Excellent abrasion resistance, Oil/Solvent resistance, Low temperature flexibility, High pressure resistance, Excellent mechanical properties.
应用领域：传送带、管材、密封圈、线缆、共混改性、汽车配件、脚轮、鞋材、包胶等

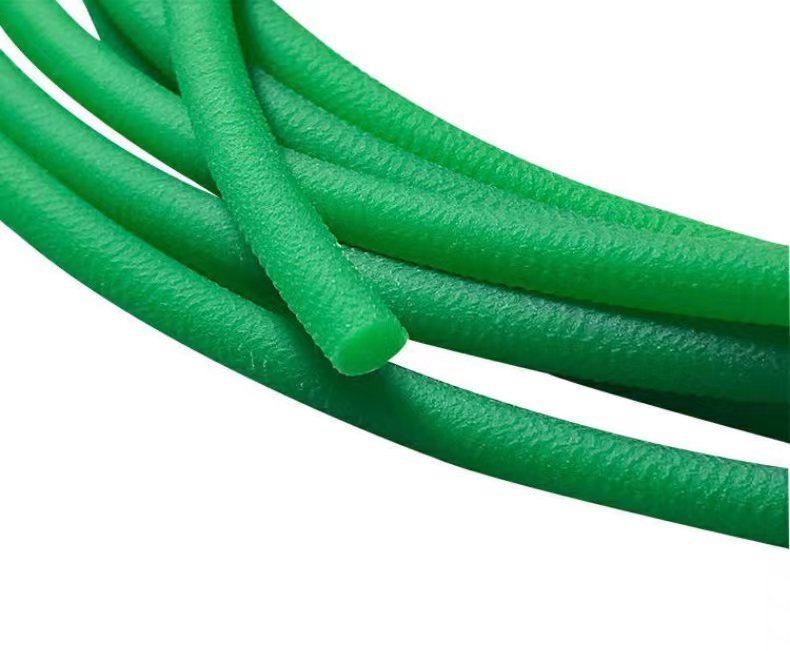

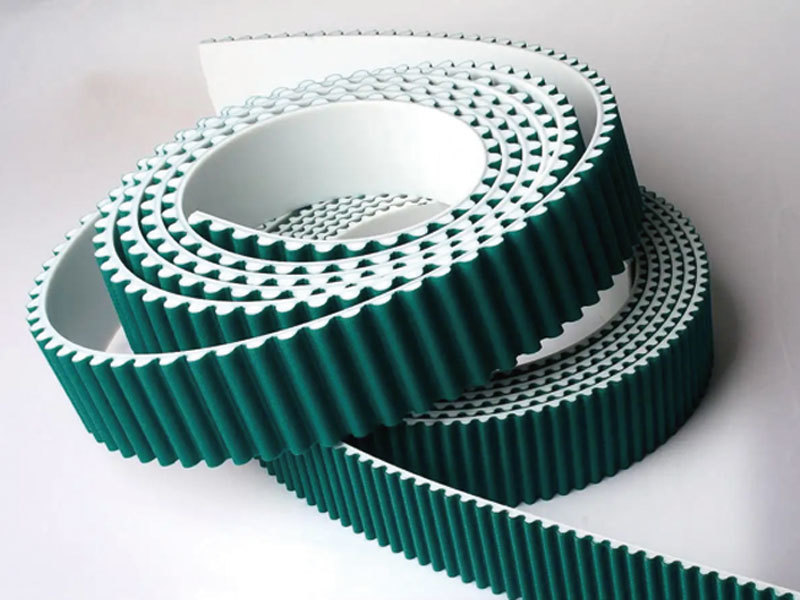

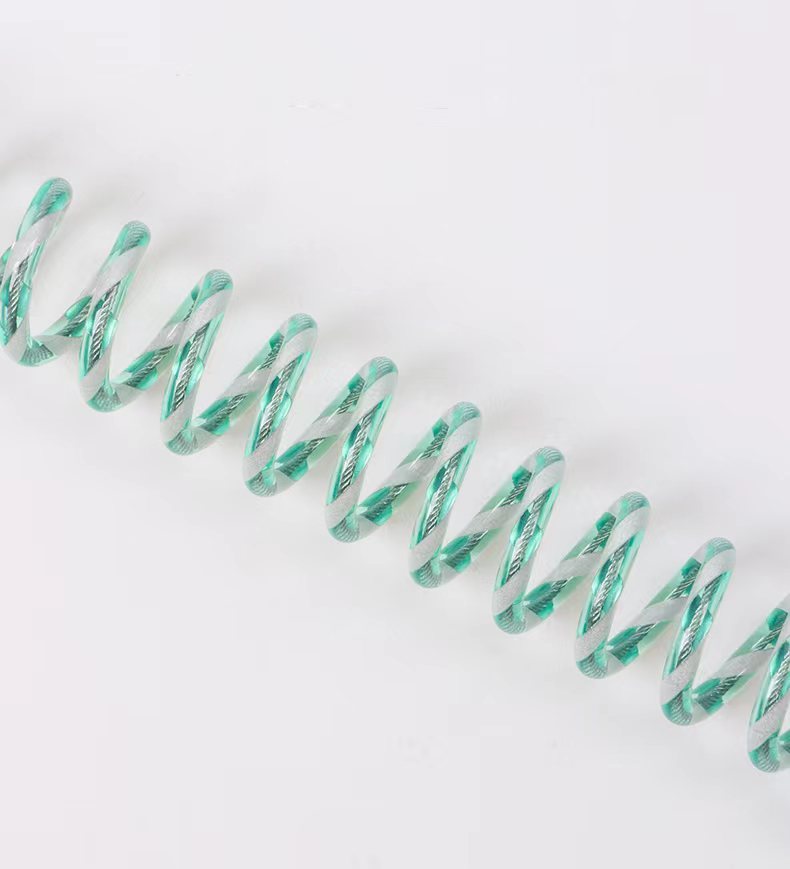

Applications：Belting, Hose & Tube, Seal & Gasket, Compounding, Wire & Cable, Automotive parts, Caster, Footwear, Over-molding etc.
| 项目 Items | 硬度 Hardness | 密度 Density | 100%模量 100%Modulus | 300%模量 300%Modulus | 抗张强度 Tensile Strength | 断裂伸长率 Elongation At Break | 撕裂强度 Tear Strength | 玻璃化转变温度 Tg |
标准 Standard | ASTM D2240 | ASTM D792 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D624 | DSC |
单位 Unit | Shore A/D | g/cm³ | MPa | MPa | MPa | % | N/mm | ℃ |
S1180A | 82A | 1.20 | 6 | 11 | 35 | 560 | 115 | -35 |
S1185A | 87A | 1.21 | 10 | 19 | 40 | 500 | 140 | -30 |
S1190A | 92A | 1.22 | 13 | 22 | 45 | 460 | 180 | -25 |
S1195A | 95A | 1.22 | 15 | 24 | 45 | 420 | 190 | -25 |
注：表中数据均为典型值，不能视为产品标准
Note: The above values are shown as typical values and should not be used as specifications.
