G 系列
G85-G98
产品描述
硬 度：Shore A 85-98
Hardness：Shore A 85-98
加工方式：注塑、挤出
Processing：Injection & Extrusion.
产品特性：优异的耐磨性、耐油/溶剂性、抗低温曲挠性、抗高压性、优异的力学性能
Features： Excellent abrasion resistance, Oil/Solvent resistance, Low temperature flexibility, High pressure resistance, Excellent mechanical properties.
应用领域：气动管、汽车配件、透明气垫、透明鞋材、薄膜、鞋服等

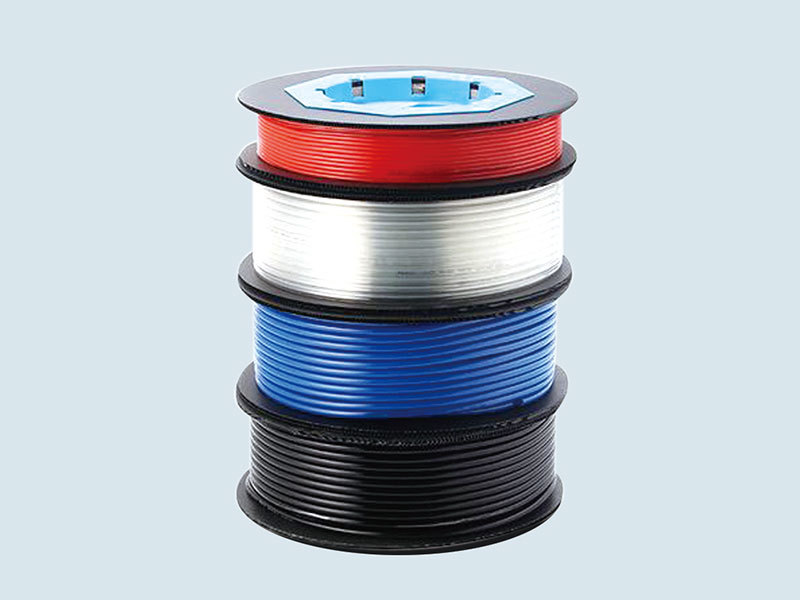

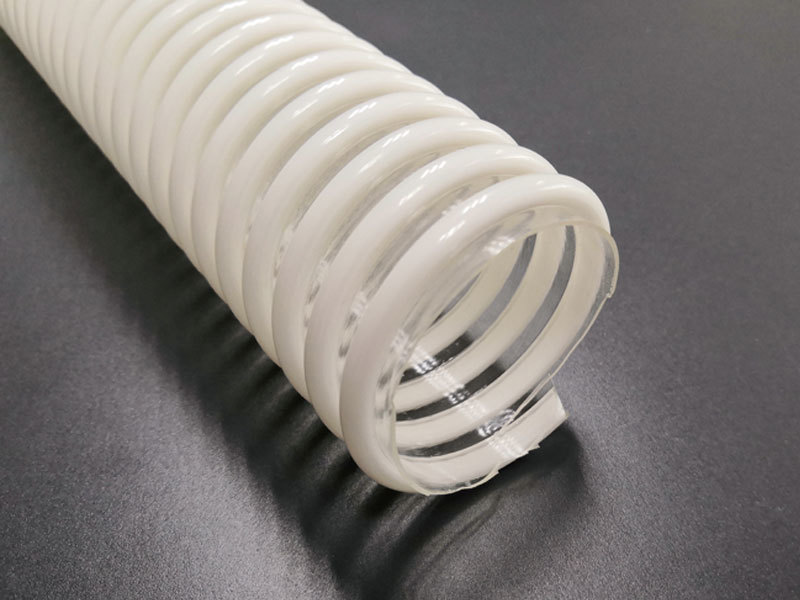

Applications：Hose & Tube, Automotive parts, Caster, Footwear, Film, Clothing and Footwear etc.
| 项目 Items | 硬度 Hardness | 密度 Density | 100%模量 100%Modulus | 300%模量 300%Modulus | 抗张强度 Tensile Strength | 断裂伸长率 Elongation At Break | 撕裂强度 Tear Strength |
标准 Standard | ASTM D2240 | ASTM D792 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D412 | ASTM D624 |
单位 Unit | Shore A/D | g/cm³ | MPa | MPa | MPa | % | N/mm |
G85A | 87A | 1.20 | 6 | 11 | 35 | 560 | 115 |
G90A | 92A | 1.22 | 10 | 19 | 40 | 500 | 140 |
G95A | 95A | 1.23 | 13 | 22 | 45 | 460 | 180 |
G98A | 98A | 1.24 | 15 | 24 | 45 | 420 | 190 |
注：表中数据均为典型值，不能视为产品标准
Note: The above values are shown as typical values and should not be used as specifications.
